Plastic insert moulding is a special type of insert injection molding. Plastic insert moulding allows metal parts to be included in plastic parts—metal insert molding

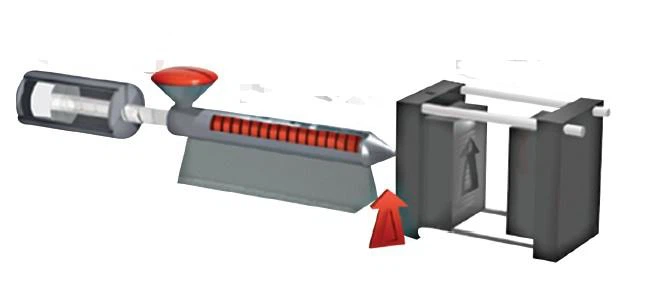

The whole process of injection molding can be divided into

Feeding process > > > Plasticizing process > > > Injection stamping process > > > Cooling solidification process > > > Demoulding process, each cycle, on the completion of a forming.

plastic insert moulding

Common injection molding products

Phenomenon	Reason	Treatment measures
Product shortage	1. The material melt flow rate is low and the fluidity is poor, resulting in insufficient quantity and materials.	1. Choose materials with higher melt flow rate.
	2. Too much air and poor exhaust of the mold lead to insufficient filling of the mold cavity.	2. Add or expand exhaust channels.
	3. Injection molding temperature is low and pressure is low.	3. Increase the injection temperature and pressure.
Flash	1. The mold locking force is insufficient.	1. Improve the clamping force.
	2. Die deformation.	2. Trim the mold.
	3. The flow velocity of material melt is too high.	3. Choose materials with low melt flow rate.
	4. The injection pressure is high.	4. Adjust the injection molding pressure.
Product brittleness	1. The original molecular structure is destroyed because the material selection brand is wrong or too much recycled material is added.	1. Choose materials suitable for thick walls and use new materials.
	2. The product structure or mold structure is unreasonable, and there is directivity in the injection molding process, resulting in internal stress, especially cracking along the material flow direction.	2. Adjust the molding process and post-treatment process.
	3. Improper placement of mold temperature and injection temperature.	3. Reasonable whole mold batching temperature and injection molding temperature.
	4. The insert position is improperly placed or not.	4. Merging and inserting parts.
	5. Savage loading and unloading in the process and improper use.	5. Take and put in the process, and use it now.

plastic insert moulding supplier

Three advantages of choosing us

1. Strict production process

It is recognized by many well-known enterprises at home and abroad

Select high-quality materials to ensure product safety from the source. Establish good cooperation relationship with well-known brand raw material manufacturers, mold steel and powder metallurgy manufacturers at home and abroad to ensure the authentic performance of the materials used in our products and provide quality assurance for our products

insert injection molding company

2. Many specifications and complete varieties

Provide customized solutions for customers

Zero defect process inspection system-strictly implement ISO9001 quality management system. Incoming inspection, process inspection, finished product inspection and ex-factory inspection. Metallographic elements, tensile test, surface cleaning, packaging specifications! There are more than 200 types of standard products and more than 40,000 specifications in standing stock. Thousands of tons of conventional inventory, spot within 24 hours!

metal insert molding company

3. Excellent after-sales service

Provide you with one-stop service

Confident quality and after-sales guarantee risk-free purchasing experience, quality problems without any reason to return or exchange goods directly. Best quality, supreme service, only to seek long-term and win-win cooperation!

metal insert molding

Foreign Customer Reviews

We have been serving overseas markets for 10 years and have received good reviews from our customers. We are still young in China, but we do not compromise on quality.

insert injection molding
