Metal insert plastic injection molding is a kind of insert moulding that pre-fixes the metal insert in the appropriate position in the mold, and then plastic insert molding into the mold. After the mold is opened, the insert is cooled and solidified plastic. Methods of obtaining articles with inserts such as threaded rings, electrodes, etc.

There are two ways to place the insert in the mold during insert injection molding:

1) Manual placement; this will greatly increase the injection molding cycle, suitable for small batch production or products with complex structures.

2) Automatic placement; this is a better choice for mass production, which is beneficial to reduce human error, improve efficiency, shorten injection molding cycle, and improve product reliability.

Mold Processing step:

Step 1	Quoting	Needed 3D drawing or sample
Step 2	Mold Design	Send mold design for confirmation
Step 3	Mold Making	50% as the initial payment for starting to make the molds
Step 4	Test Run	After finishing the mold making, we will test it and make some samples.
Step 5	Sample Confirmation	Send free samples to clients for confirmation and need 50% balance payment after getting the approval from the clients
Step 6	Mold Modification	If there needs to be slightly changed on the mold, we will modify the mold and send the samples for confirmation again.
Step 7	Mass Production	50% as the initial payment for starting to make the mass production based on the mold.

Advantages of insert injection molding:

1) The combination of the easy formability and elasticity of plastic and the rigidity, strength and heat resistance of metal can make complex and exquisite metal-plastic integrated products firmly; reduce the size and weight of the product.

2) Using the combination of plastic insulation and metal conductivity, the formed products can meet the basic functions of electrical products; they can also meet some special requirements, such as magnetic permeability, wear resistance and fastening.

3) Adding metal inserts to plastics can improve the strength of plastic parts.

4) Insert injection molding increases the flexibility of product design and provides new possibilities for the combination of plastic and metal and other parts.

5) Avoid secondary processes such as hot melting, welding and riveting, and have the opportunity to shorten assembly time and cost.

6) Inserts are not limited to metal, but also include cloth, paper, wire, plastic, glass, wood, coils, electrical parts and plastic parts.

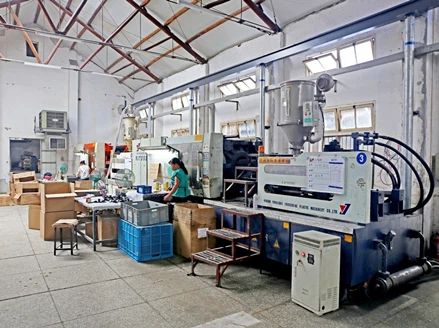

The company has two factories which occupy a total area of more than 18,000 square meters, and a total of 102 sets of injection molding machines with the heaviest up to 15,000KN(1500tons). We set up different kinds of assembling rooms according to different injection molding products, such as the medical instruments assembling room, the electronics assembling room, the baby-car assembling room, mountaineering bag accessories assembling room, and tile spacers automatic packaging workshop. Our team has around 320 hard -working workers, including 37 managers, 24 engineers, and 16 quality inspectors. We deal with design and manufacture of plastic precision molds, construction products, power tools, auto parts, baby strollers, mountaineering bags, plastic buckets and folding crates and so on, specializing in using PC(polycarbonate), PA(nylon), PMMA(acrylic), POM(polyformaldehyde), PPO, PBT, PC/ABS, TPU plastic raw material to adjust production process appropriately so that products can achieve the best performance.

Vertical injection molding machine

Vertical injection molding machine is a mechanical device. Usually consists of injection system, mold clamping system, hydraulic transmission system, electrical control system, lubrication system, heating and cooling system, safety monitoring system, etc.

Horizontal injection molding machine

Horizontal injection molding machine: This is the most common type. The clamping part and the injection part are on the same horizontal centerline, and the mold is opened in the horizontal direction. Its characteristics are the body is short, easy to operate and maintain. The center of gravity of the machine is low, and the installation is relatively stable; after the product is ejected, it can be automatically dropped by gravity, which is easy to achieve fully automatic operation. At present, most injection molding machines on the market use this type.

Plastic Injection Molding

Custom Plastic Injection Molding

At Ding Yue Plastics, we enjoy the challenges that come with bringing custom injection molded plastic parts to reality. Creating the tooling and production environment for your one-of-a-kind plastic component has been our core competency for more than 15 years.

We deal with design and manufacture of plastic precision molds, construction products, power tools, auto parts, baby strollers as well as mountaineering bags, precision plastic parts. And while we are proud of Ding Yue Plastics accomplishments, we also continue to evaluate and refine our production processes. This keeps our knowledge of leading-edge plastic fabrication technologies fresh and helps our engineering and production teams select the best possible solution for your custom plastic injection parts.

Materials List

We have a big warehouse which could be able to storage 50~200ton plastic materials. We deal with design and manufacture of plastic precision molds, construction products, power tools, auto parts, baby strollers as well as mountaineering bags, precision plastic parts, specializing in abs injection, polyethylene injection molding, polystyrene injection molding. nylon molding, ppe for injection moulding and other thermoplastic injection.

FAQ:

1 Q: Which kind of product can you do?

A: Plastic injection molding and mass production for plastic parts.

2 Q: How long does it take to finish the mold making?

A: Usually it will take about one month to finish the mold.

3 Q: How about the samples?

A: Once the mold is finished, we will make some samples to you for checking.

4. Q: Can you help with the design?

A: Yes, simply design free, special design need to pay.

5 Q: How about the proprietary rights of the plastic injection mold?

A: The mold belongs to customer if you pay for the total mold cost.

6 Q: How to save sample cost？
