Tile Leveling System Screw

DYTS-4 Product Description

Place of Origin: CN; JIA

Brand Name: DYTS5　

Material: PP

Cap Size: 48mm(diam)25mm(H)

Strap Size: 40mm(w)100mm(H)　

Applicable Tile space: 0.75mm(1/32in) or 1.5 mm(1/16in)　

Applicable Tile thickness: 1-20mm(13/16in) or 20-40mm(1 19/32in)

Product way: Injection molding

Cap Weight:4.9g　

Cap Color: white

Strap Weight:3.2g　

Strap Color: White　

Cap Package: 100pcs/250*350mm bag and 24bags/54*38*35cm Carton Box

Strap Package: 100pcs/300*380mm bag and 18bags/54*38*35cm Carton Box

Function: works with all sizes of ceremic tile ,porcelain,stone and marble

Feature: strap be kicked off and cap be reused　

Logo: As customized

DYTS-4 Product Detail

① Cap that controls end stroke

② Speed removal of the Cap

③ Reused for lots of times.

① Thinner base of the strap to slide better into the mortar

② Allows to install tiles from 1-20mm(13/16in) or 20-40mm(1 19/32in) thickness

③ Strap available for 0.75mm(1/32in) or 1.5 mm(1/16in) of grout /joint.

① Double gear structure on the strap

② Arc design on the bottom of strap

③ The hole and notch design on the strap

DYTS-4 Product Image

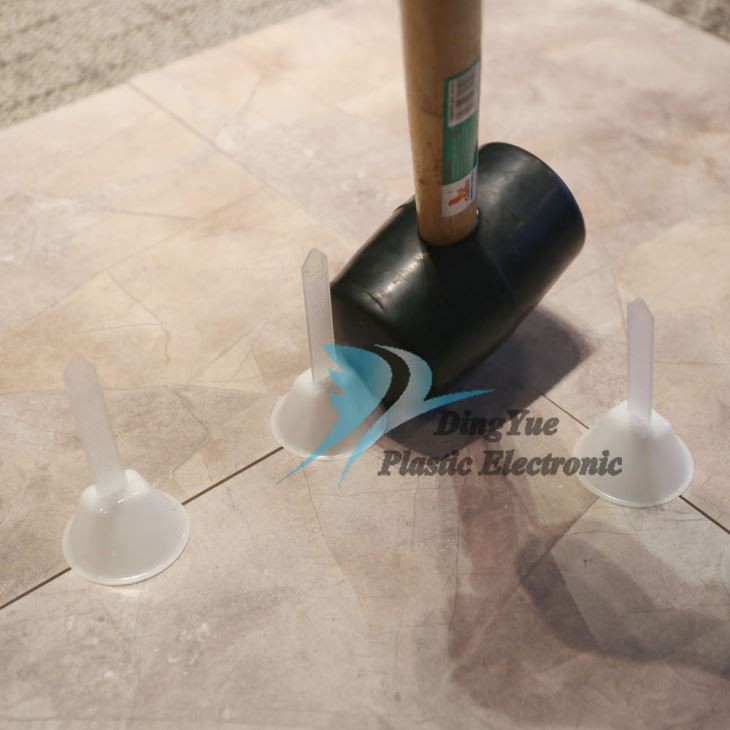

How to use DYTS-4

How to pack DYTS-4
