Types Of Injection Moulding

Injection moulding is a widely used manufacturing process in which melted plastic material is forced into a mould to create a desired shape. There are several types of injection moulding techniques that vary based on the type of mould, plastic material used, and the desired outcome. In this article, we will discuss the different types of injection moulding techniques to help you better understand this crucial manufacturing process.

1.Injection moulding with a single cavity:

This is the most basic type of injection moulding and involves the creation of a single part using a single cavity mould. The melted plastic is injected into the mould, where it cools and solidifies, forming the desired shape.

2.Injection moulding with multiple cavities:

Injection moulding with multiple cavities involves the use of a mould that has several cavities, allowing the production of several parts at once. This type of injection moulding is ideal for mass production and helps to reduce production costs and increase efficiency.

3.Injection moulding with insert moulding:

Insert moulding is a technique in which a pre-made part is placed inside a mould before the melted plastic is injected. This type of injection moulding allows for the creation of complex parts that would be difficult to produce through other manufacturing processes.

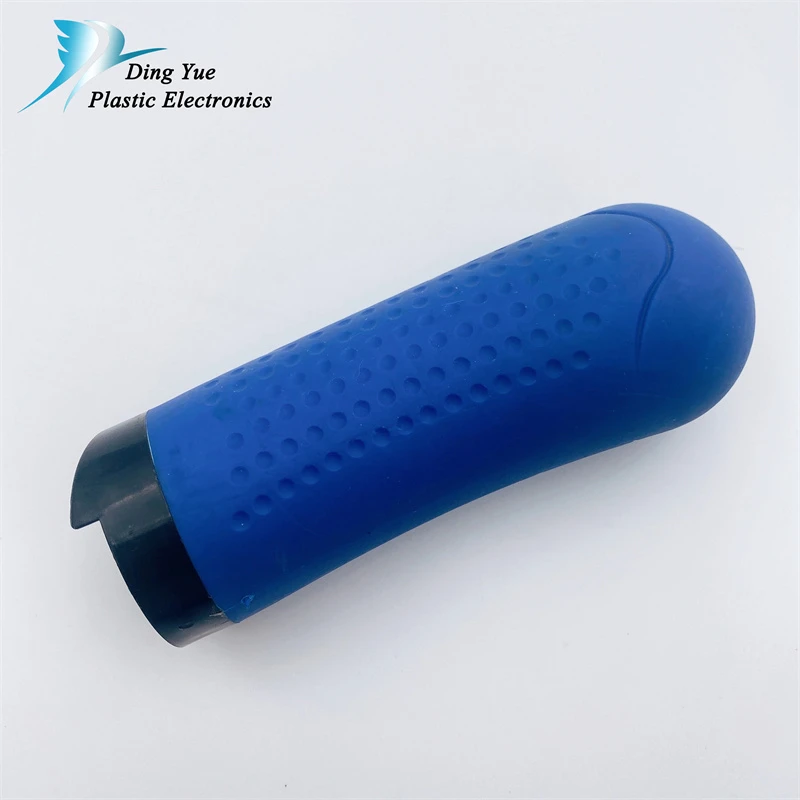

4.Overmoulding:

Overmoulding is a type of injection moulding in which a second layer of plastic material is added to an already existing part. This technique is often used to improve the strength and durability of a part, and to add a different type of plastic with different properties.

5.Micro-injection moulding:

Micro-injection moulding is a technique that involves the use of a micro-mould to create extremely small parts. This type of injection moulding is often used in the production of micro-electronic components and medical devices.

6.Injection-compression moulding:

Injection-compression moulding is a type of injection moulding in which the mould is compressed before the melted plastic is injected. This helps to reduce the amount of flash (excess material) produced, and also improves the strength and accuracy of the final part.

In conclusion, injection moulding is a versatile and widely used manufacturing process that offers many different techniques to suit various applications. Whether you are looking to produce a single part or mass produce a complex component, injection moulding is a cost-effective and efficient method that can deliver high-quality results.
