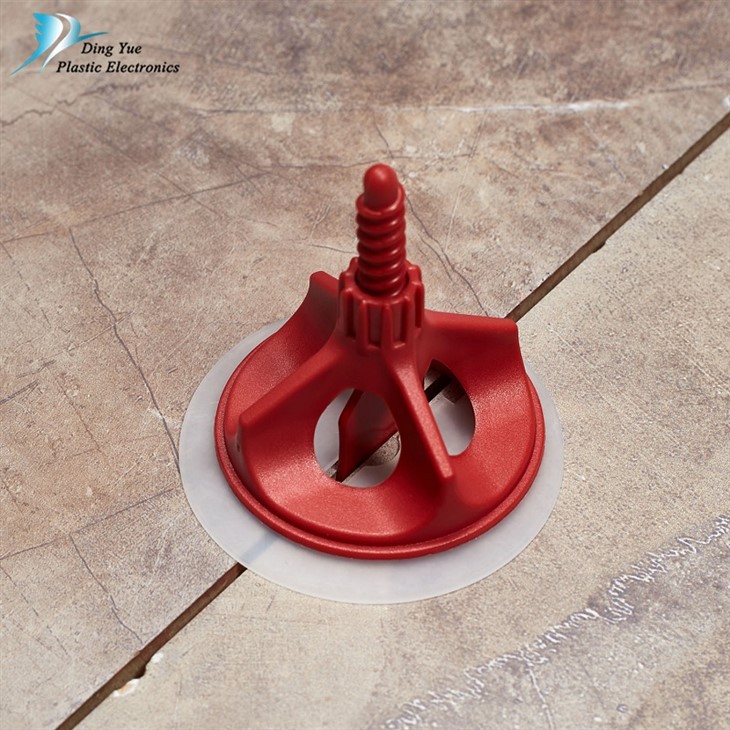

Spinner Tile Leveling System

The Spinner Tile Leveling System works based on a simple yet effective mechanical principle. When laying tiles, the base of the system is placed under the edge of the tile. The different thickness options (1MM, 1.5MM, 2MM, 3MM, 5MM) of the base allow for adjustments according to the specific leveling needs of the tile. The cap is then attached over the base. As you tighten the spinner cap, it exerts an upward force on the tile edge. This force helps to lift and level the tile so that it is in the same plane as the adjacent tiles. By using multiple spinner tile leveling systems around the edges of a tile, you can ensure that the entire surface of the tile is properly aligned and level with respect to the surrounding tiles. The yellow cap and black base not only provide a standard appearance but also make it easier to handle and operate during the tile - laying process.

The Spinner Tile Leveling System is a handy tool for achieving an even tile installation. Before starting, gather all components of the system, including leveling clips and spinning caps, along with your tiles, tile adhesive, and a trowel for applying the adhesive.
Use the trowel to spread an even layer of tile adhesive on the installation surface as per the tile and installation requirements. Gently place the first tile onto the adhesive, then continue placing adjacent tiles, leaving a small gap between each to accommodate the leveling system.
Insert the leveling clips into the gaps between the tiles, ensuring they straddle the tile edges evenly and at the proper height to level the tiles. Attach the spinning caps to the top of the leveling clips. By rotating these caps, you can adjust the relative height of the tiles. If one tile is higher, turn the cap of the corresponding clip to lower it until the tiles are flush. Continuously check the level with a spirit level or similar tool, making multiple adjustments as needed.
Let the tile adhesive dry and set according to the manufacturer's guidelines. The leveling system keeps the tiles in place during this time. Once the adhesive has set, remove the spinning caps and leveling clips; some clips may break off easily, leaving a small part that can be covered by grout.
Finally, after removing the leveling system components, grout the gaps between the tiles to complete the installation and give the tiled surface a finished appearance.

Yangzhou Dingyue Plastic Electronics is a company dedicated to manufacturing a diverse range of tile tools. With a focus on quality and innovation, they produce items like tile cutters, tile spacers, and leveling systems. Their products are designed to meet the needs of both professional tilers and DIY enthusiasts. Utilizing advanced production techniques and high - grade materials, Yangzhou Dingyue ensures that each tool offers excellent performance, durability, and ease of use. These tile tools have gained popularity in the market for enhancing the efficiency and precision of tile - laying projects.

FAQ
Q: Do you have various tile leveling systems?
A: Yes. If you have the type you want, please contact us.

Q: What is the suitable tile thickness for the leveling system?
A: This type is suitable for tile thickness of 5-16 mm.
If your tiles are large or small, I will recommend the tiles that are best for you.

Q: Are you a manufacturer?
A: Yes. We have our own factory and our products are designed and developed by ourselves.

Q: Can I take samples before bulk order?
A: Yes, we are always happy to send you samples of our products.
Just let us know your requirements and shipping address.

Q: Can you make our own packaging?
A: Yes, you only need to provide the packaging design and we will produce the product you want. We also have professional designers who can help you with packaging design.

Q: When can I get the price?
A: Usually we quote within 8 hours after receiving your inquiry.

Q: What are your delivery terms?
A: We accept EXW, FOB, DDP, CIF, etc. You can choose the one that is most convenient or cost-effective.
