Production Injection Molding

The production process of injection molding involves several steps, including mold design, material selection, mold fabrication, injection molding, and post-production finishing. Each of these steps is crucial to ensuring the final product meets the required specifications and quality.

Mold Design: The first step in the injection molding process is mold design. The mold plays a vital role in determining the part quality and shape. The mold design process involves analyzing the part design, material characteristics, and production requirements to determine the best mold design.

Material Selection: The next step is material selection. The choice of material is critical to the success of the injection molding process. The material used must meet the requirements of the part, including the desired properties, strength, durability, and environmental considerations.

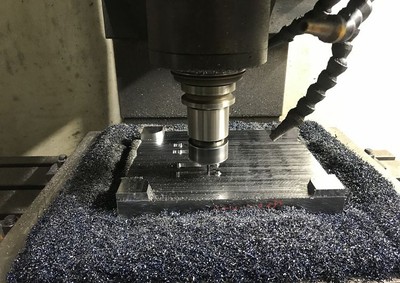

Mold Fabrication: Once the mold design and material selection are complete, the mold is fabricated. The mold fabrication process involves machining the mold cavity and core inserts to the required tolerances and surface finish. The mold fabrication process also involves the installation of ejector pins, cooling channels, and other necessary components.

Injection Molding: The actual injection molding process involves the melting and injection of the material into the mold cavity. The material is heated to a specific temperature and injected into the mold cavity under high pressure. The mold is then cooled using cooling channels, and the part is ejected from the mold once it has solidified.

Post-Production Finishing: After the part is ejected from the mold, it undergoes some post-production finishing processes, including trimming, deburring, and surface finishing. These processes are essential to ensuring the parts meet the required quality standards.

In conclusion, injection molding is a highly efficient and versatile manufacturing process that is widely used in the production of plastic parts. It involves several steps, including mold design, material selection, mold fabrication, injection molding, and post-production finishing. Each of these steps is crucial to ensuring the final product meets the required specifications and quality. With the right equipment, expertise, and attention to detail, injection molding can produce high-quality parts that meet the requirements of various industries.
