Plastic Overmolding

Plastic overmolding is a two-step manufacturing process that involves molding a plastic material over another material, typically a metal or a different plastic, to create a single, composite part. Here's an overview of the process:

1. Substrate Manufacturing: The first step is to create the substrate, which is the part over which the plastic will be molded. This substrate could be a metal part, such as a screwdriver handle, or a pre-molded plastic component. The substrate needs to have a high melting point than the overmold material to withstand the second molding process.
2. Surface Preparation: Before overmolding, the surface of the substrate may need to be treated to ensure good adhesion. This could involve texturing, cleaning, or applying an adhesive.
3. Mold Design and Creation: A custom mold is designed and created for the overmolding process. This mold has cavities shaped like the final product, with space for the substrate to be inserted.
4. Insertion of the Substrate: The substrate is placed into the overmolding mold. It must be held securely in place so that it does not shift when the overmold material is injected.
5. Overmold Material Injection: The overmolding material, typically a thermoplastic or thermosetting polymer, is heated until it melts and then injected into the mold cavities around the substrate.
6. Cooling and Solidification: After the overmold material is injected, it cools and solidifies, forming a strong bond with the substrate.
7. Mold Opening and Part Ejection: Once the overmold material has cooled and cured, the mold is opened, and the composite part is ejected. Additional post-processing steps, such as trimming excess material or secondary finishing, may be required to achieve the desired final product.
8. Quality Control: The finished parts are inspected for quality, ensuring that the overmold has properly adhered to the substrate and that the part meets all specifications.

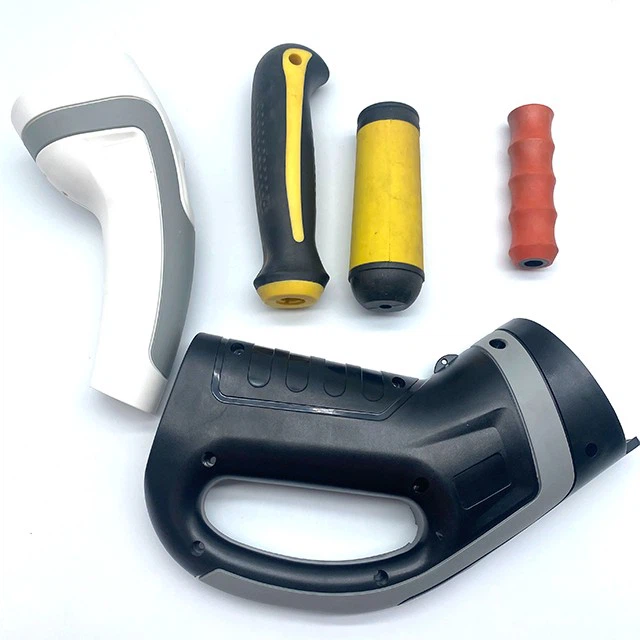

Plastic overmolding is widely used to add soft-touch grips to tools, to provide additional insulation or shock absorption, to create multi-colored or multi-material parts, or to encapsulate electronic components, among other applications. It allows for the creation of complex shapes and can enhance the durability and performance of the final product.

About us
At Ding Yue Plastics, we specialize in Injection Molding, Insert Molding, and Over Molding, boasting a robust press range from 45 to 1000 tons, with our capabilities expanding daily. Our services cater to a diverse clientele across medical, automotive, packaging, construction, and agricultural sectors. We implement rigorous quality control measures at every stage of production, ensuring each product meets strict standards for color, appearance, and dimensional tolerances. With over a decade of expertise and cutting-edge technology, we consistently deliver top-tier quality, on schedule.

Selecting Yangzhou Dingyue Plastic Electronics Co., Ltd. for your Plastic overmolding needs offers distinct advantages:
Capabilities and Facilities
With advanced manufacturing technology and automation, Dingyue Plastic ensures efficient, high-quality production for complex overmolding projects.

Material Selection
We provide a wide range of high-quality materials, bolstered by our expert knowledge in material selection and partnerships with top-quality suppliers. This ensures a professional and tailored choice, offering the perfect blend of performance and durability to meet your specific needs.

Quality Control and Certifications
Our commitment to quality is backed by ISO 9001 certification and stringent quality control measures, ensuring top-tier product standards.
Technical Support and Design Assistance
Our experienced engineers offer valuable design optimizations and technical support, streamlining the path from concept to production.

Choosing Dingyue Plastic means opting for a partner dedicated to delivering excellence in Plastic overmolding solutions, characterized by quality, efficiency, and innovation.

FAQ
1. HOW SOON CAN I GET REPLY AFTER SEND INQUIRY?
A: All inquiries will be replied within two hours except off time in China.

2. HOW SOON CAN I GET ONE SAMPLE?
A: Generally, samples can be sent out within 7davs after the mold has been finished

3. WHAT FILE FORMAT CAN YOU ACCEPT FOR MY PRODUCTS?
A: We can accept varies format, igs, step, stp, jpg, pdf, dwg, dxf and so on. lf you do not have a prepared CAD file, we can accept a scan of a hand drawn design.

4. IF I DON'T HAVE DRAWING, HOW CAN I GET ONE SAMPLE?
A: If you don't have any drawings, you can send us your samples. We will scan it and make 2D and 3D drawing first for getting your confirmation.

5. How Long Is the Lead-Time for Mold?
A: It all depends on the mold's size and complexity. Normally, the lead time is 25-35days.
If the Molds are very simple and not big size, we can work out within 15 days."

6. Is It Possible To Know How's Product Going On Without Visiting Your Company?
A: We will offer the schedule of mold making, send weekly reports with digital pictures and videos which show the machining progress.

7. Before Shipment, How To Make Sure The Products Quality?
A: If you don't come to our factory and also don't have the third party for inspection, we will be as your inspection worker, we will supply you a video for production process detail include process report, products size, structure and surface detail, packing detail and so on, and will provide the inspection report to you.
